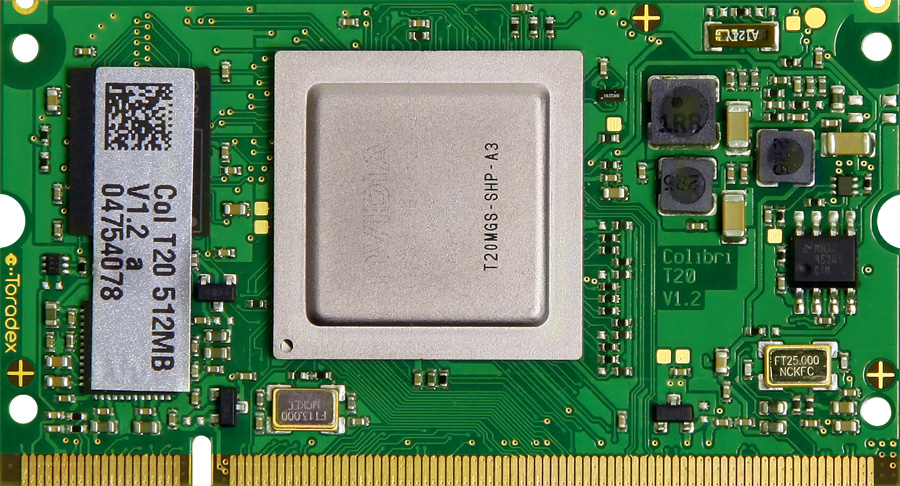

The Colibri T20 is part of the Colibri (ARM based) product family. The T20 module is based on NVIDIA's Tegra 2 ARM Cortex A9 MPCORE Dual Core processor, runs at 1.0GHz and was the first computer-on-module to feature this processor within the embedded market.
Colibri modules feature state of the art technology, and are aimed at low power systems that require high CPU performance. They are equipped with all the interfaces needed in a modern embedded device.
Microsoft® Windows® Embedded Compact, formerly known as Windows CE, is an open, scalable, 32-bit operating system (OS) that integrates reliable, real time capabilities with advanced Windows technologies.
Windows Embedded Compact allows you to build a wide range of innovative, small footprint devices. A typical Windows Embedded Compact–based device is designed for a specific use, often runs disconnected from other computers, and requires a small OS that has a deterministic response to interrupts.
Examples include enterprise tools, such as industrial controllers, communications hubs, and point-of-sale terminals, and consumer products, such as cameras, Internet appliances, and interactive televisions.
| Windows CE 5.0 / 6.0 |
Windows Embedded Compact 7 | Windows Embedded Compact 2013 (coming soon) |
|
| Overview | |||
| Toradex Products with included Run Time License | Colibri, Apalis T30 | Colibri T20/T30, Apalis T30 | t.b.a. |
| Toradex Products with Optimised BSP | Colibri PXA, Colibri T20/T30 (WinCE 6.0) | Colibri T20/T30, Apalis T30 | Colibri T20/T30, Apalis T30 |
| Memory Footprint (Flash/RAM) | 7MB / 15MB | 15MB / 32MB | 12MB / 25 MB |
| Additional images from Toradex | |||
| Application Development Environment | Visual Studio 2008 | Visual Studio 2008 | Visual Studio 2012 |
| Minimum Availability of OS Support | 2022 | 2026 | 2028 |
| OS Feature Set | |||
| Preemptive Multitasking | |||
| Support for Multi-Core | - | ||
| Protected Application Memory Space | |||
| Snapshot Boot | - | - | |
| Real Time Capabilities | |||
| Interrupt Latency <7 uS | |||
| .NET Compact Framework | Version 2.0 and 3.5 | Version 2.0 and 3.5 | Version 2.0, 3.5 and 3.9 |
| Component Services: COM, DCOM | |||
| XML | |||
| Servers (DHCP, File, Telnet, FTP, HTTP, Time) | (1) | (1) | |
| RAM Based Registry (alternative: hive based) | |||
| FAT / TFAT (Transaction Safe FAT) | |||
| exFAT | (2) | ||
| Power Management | |||
| Dynamic Voltage / Frequency Switching | - | ||
| DirectDraw Graphics Including Alpha Blending | |||
| Touch | |||
| Touch Gestures | - | ||
| Audio with Codecs | |||
| DirectShow and Video Codecs | |||
| 3D Acceleration | |||
| OpenGL ES V2.0 | - | ||
| USB: Storage Device, HID, RNDIS, ActiveSync | |||
| UART, LAN, TCP/IP | |||
| IrDA | - | - | |
| WLAN, Bluetooth | (3) | (3) | (3) |
| SDIO | |||
| Authentication Services: NTLM, SSL/TLS, Kerberos | |||
| Support for International Fonts and Languages | |||
| Toradex Software | |||
| Colibri Tweak | |||
| GPIO Configurator | |||
| Bootloader and OS Update Tool | |||
| Fail Safe Bootloader | |||
| Application launcher | |||
| Easy Production Programming | |||
| Toradex Libraries (Cloud, GPIO, Interrupt, DMA, PWM, AC97, I2C, SPI, One-Wire, CAN, RTC, Camera and more) | |||
| Example Third Party Software | |||
| CODESYS (3S) | Software PLC | ||
| Creme (NSIcom) | Java VM | ||
| EB GUIDE (Elekrobit) | Infotainment Framework | ||
| Eve (Ewesoft.com) | Java Programming System | ||
| QT (Digia) | Application Framework | ||
| LabVIEW (National Instruments) | Lab Automation Framework | ||
| UI Composer (NVIDIA) | HMI Framework | ||
| Webkit Browser (Zetakey) | HTML5 Web Browser (coming soon) | ||
| XAML In The Hand (In The Hand) | Silverlight for Windows Embedded | ||
Notes:
(1) - Does not include Telnet & FTP
(2) - Not WinCE 5.0
(3) - Seperate Run Time License Required
Linux is a Unix-like computer operating system assembled under the model of free and open source software development and distribution.
The advantage over proprietary embedded operating systems include a support base that is not restricted to the employees of a single software company, and the ability to modify and redistribute the source code.
| V1.x | V2.x | |
| Overview | ||
| Toradex Products with optimised BSP | Colibri T20 | Colibri T20/T30, Apalis T30 |
| U-Boot Bootloader | 2011.06 | 2011.06 |
| Linux Kernel | 2.6.36.2 | 3.1.10 |
| NVIDIA Codebase | Vibrante | L4T R16.2 |
| OpenEmbedded | classic 2011.03 | oe-core 2012.10 |
| U-Boot Bootloader | ||
| Environment Storage (T30 eMMC, T20 NAND or MMC/SD card) | ||
| Ethernet Download | ||
| NAND/eMMC Flash with NVIDIA Partition Table Parsing | ||
| RAM Size Auto Detection | ||
| 115200 Baud Serial Debug Console | ||
| Toradex Colibri Configuration Block Handling | ||
| USB Storage as Host | ||
| Kernel | ||
| Preemptive Multitasking | ||
| Support for Multi-Core | ||
| Protected Application Memory Space | ||
| Real Time Capabilities | ||
| GPIOlib (/sys/class/gpio) | ||
| Temperature Sensor (/sys/bus/i2c/devices/4-004c) | ||
| Ethernet (eth0) | ||
| NAND Flash MTD YAFFS2 (T20) | ||
| eMMC Flash EXT3 (T30) | ||
| Serial Debug Console (UARTA) | ||
| High Speed Serial (UARTB and UARTD) | ||
| I2C (/dev/i2c) | ||
| MMC/SD Card (optional 8-bit) | ||
| HDMI S/PDIF Audio | ||
| Analog Audio Capture and Playback | ||
| Resistive Touch | ||
| SPI (/dev/spidev) | ||
| External Bus Interface (GMI) | ||
| Framebuffer Console | ||
| Custom Ethernet MAC Address | ||
| Serial Number and Board Revision | ||
| Watchdog | ||
| USB OTG Port / Automatic USB Device / Host | ||
| USB Device Ethernet RNDIS gadget | ||
| USB Host Port(s) | ||
| USB Classes: Audio/ HID / HID raw / Mass Storage / UVC Webcam ... | ||
| PWM LEDs (/sys/class/leds) | ||
| Analog Inputs AD0, AD1 | ||
| RTC (Tegra Internal, PMIC and Board Level I2C RTC) | ||
| Power Management (DVFS / Thermal Throttling) | - | |
| Suspend LP1 | - | |
| Optional Camera ITU-R BT.656 Embedded Synch | - | |
| Optional 1-Wire | ||
| Crypto Engine Support | ||
| GPIO Keys | - | |
| Additionally on Apalis T30 | ||
| CAN (x2) | - | |
| HD Audio, for external Codec | - | |
| PCIe | - | |
| SATA | - | |
| User Space | ||
| LXDE Desktop Environment | ||
| HDMI / DVI-D | ||
| Digital RGB / LVDS | resolution hard-coded | |
| CRT aka Internal Video DAC | - | |
| NAND Flash MTD YAFFS2 (T20) | ||
| eMMC Flash EXT3 (T30) | ||
| Gstreamer Audio/Video Codecs (see note 1) | ||
| Gstreamer Video Playback, 1080p Video Decoder (see note 1) | ||
| Gstreamer Video Encoder (see note 1) | - | |
| OpenGL ES 1.1 | - | |
| OpenGL ES 2.0 | ||
| Firefox | ||
| Toradex Software | ||
| Tegra Health Monitor | ||
| GPIO Configurator | ||
| Third Party Software | ||
| GTK, Qt, OpenCV, CANopen, Perl, Python, Java and more | Most standard Linux packages can be cross-compiled and run without any issues | |
Note 1 - Customer is required to obtain the proper license / approval from the respective IP holder.
|
256MB - V1.2A
|
512MB - V1.2A
|
256MB IT - V1.2A
|
512MB IT - V1.2A
|
|
| CPU | ||||
| CPU Name | NVIDIA® Tegra™ 2 | NVIDIA® Tegra™ 2 | NVIDIA® Tegra™ 2 | NVIDIA® Tegra™ 2 |
| CPU Type | ARM Cortex™-A9 | ARM Cortex™-A9 | ARM Cortex™-A9 | ARM Cortex™-A9 |
| CPU Cores | 2x | 2x | 2x | 2x |
| CPU Clock | 1.0 GHz | 1.0 GHz | 1.0 GHz | 1.0 GHz |
| Instruction Cache | 32KByte per core | 32KByte per core | 32KByte per core | 32KByte per core |
| L1 Cache | 32KByte per core | 32KByte per core | 32KByte per core | 32KByte per core |
| L2 Cache | 1MByte shared | 1MByte shared | 1MByte shared | 1MByte shared |
| Memory | ||||
| RAM | 256MB DDR2 (32Bit) | 512MB DDR2 (32Bit) | 256MB DDR2 (32Bit) | 512MB DDR2 (32Bit) |
| Flash | 512MB NAND (8Bit) | 1GB NAND (8Bit) | 512MB NAND (8Bit) | 1GB NAND (8Bit) |
| Connectivity | ||||
| External Bus | 32 Bit | 32 Bit | 32 Bit | 32 Bit |
| USB Host & Device | Port1: Host: 2.0 High Speed (480 Mbit/s), Port 2: OTG: 2.0 High Speed (480 Mbit/s) | Port1: Host: 2.0 High Speed (480 Mbit/s), Port 2: OTG: 2.0 High Speed (480 Mbit/s) | Port1: Host: 2.0 High Speed (480 Mbit/s), Port 2: OTG: 2.0 High Speed (480 Mbit/s) | Port1: Host: 2.0 High Speed (480 Mbit/s), Port 2: OTG: 2.0 High Speed (480 Mbit/s) |
| I2C | 2x + DDC | 2x + DDC | 2x + DDC | 2x + DDC |
| SPI | 4x | 4x | 4x | 4x |
| One-Wire | 1x | 1x | 1x | 1x |
| UART | 5x | 5x | 5x | 5x |
| IrDA | ||||
| PWM | 4x | 4x | 4x | 4x |
| GPIOs | up to 110 | up to 110 | up to 110 | up to 110 |
| Analog Input | 4x | 4x | 4x | 4x |
| Ethernet | 10/100 Mbit | 10/100 Mbit | 10/100 Mbit | 10/100 Mbit |
| SDIO/SD/MMC | 2x | 2x | 2x | 2x |
| Multimedia | ||||
| Display Controller | Dual, Independent | Dual, Independent | Dual, Independent | Dual, Independent |
| Graphics Controller | Integrated Ultra-low power NVIDIA GeForce GPU | Integrated Ultra-low power NVIDIA GeForce GPU | Integrated Ultra-low power NVIDIA GeForce GPU | Integrated Ultra-low power NVIDIA GeForce GPU |
| Video Decoder | H.264, WMV9 VC-1, MPEG-4, MPEG-2, H.263, DiVX, XviD | H.264, WMV9 VC-1, MPEG-4, MPEG-2, H.263, DiVX, XviD | H.264, WMV9 VC-1, MPEG-4, MPEG-2, H.263, DiVX, XviD | H.264, WMV9 VC-1, MPEG-4, MPEG-2, H.263, DiVX, XviD |
| 2D Acceleration | ||||
| 3D Acceleration | ||||
| HDMI | V1.3 1080p (1920 x 1080) | V1.3 1080p (1920 x 1080) | V1.3 1080p (1920 x 1080) | V1.3 1080p (1920 x 1080) |
| VGA | 1600 x 1200 | 1600 x 1200 | 1600 x 1200 | 1600 x 1200 |
| RGB | 1920 x 1200 24bpp | 1920 x 1200 24bpp | 1920 x 1200 24bpp | 1920 x 1200 24bpp |
| Resistive Touch | 4/5-wire | 4/5-wire | 4/5-wire | 4/5-wire |
| Audio In/Out | ||||
| Operating Systems | WinCE 6.0/7.0 & Linux | WinCE 6.0/7.0 & Linux | WinCE 6.0/7.0 & Linux | WinCE 6.0/7.0 & Linux |
| Preinstalled OS | Windows Embedded Compact 7 Core | Windows Embedded Compact 7 Core | Windows Embedded Compact 7 Core | Windows Embedded Compact 7 Core |
| Physical | ||||
| Size | 67.6 x 36.7 x 6.2 mm | 67.6 x 36.7 x 6.2 mm | 67.6 x 36.7 x 6.2 mm | 67.6 x 36.7 x 6.2 mm |
| Temperature | 0° to 70° C | 0° to 70° C | -40° to 85° C | -40° to 85° C |
| Power Dissipation | 1.1 - 2.8 W | 1.1 - 2.8 W | 1.1 - 2.8 W | 1.1 - 2.8 W |
| Minimum Availability | 2017 (based on Nvidia T20 roadmap) | 2017 (based on Nvidia T20 roadmap) | 2017 (based on Nvidia T20 roadmap) | 2017 (based on Nvidia T20 roadmap) |
Colibri Evaluation Board - V3.1A | Iris Carrier Board - V1.1A | Orchid Carrier Board - V1.0C | Orchid Carrier Board - V1.0B | |
 |  |  | | |
Volume Production | Volume Production | Volume Production | ||
| Datasheet | Datasheet | Datasheet | Datasheet | |
| Technical Details | ||||
| Connectivity | ||||
| Supported Modules | Entire Colibri Family | Entire Colibri Family | Entire Colibri Family | Entire Colibri Family |
| Compact Flash Card Interface | — | — | ||
| USB Host & Device | High Speed USB Host/Device | High Speed USB Host/Device | Full Speed USB Host / Device | Full Speed USB Host / Device |
| SD/MMC Card Interface | ||||
| IrDA | — | — | — | |
| GPIOs | Accessible GPIOs via Jumpers (4 PWMs / 4 Analog-In / Camera Interface / I2C / SPI, etc) Processor Bus Switches and LEDs | SPI, I2C, UART, 4 ADCs, 4 PWMs and 8 GPIOs on header | I2C, SPI & 8 GPIOs on header | I2C, SPI & 8 GPIOs on header |
| Ethernet | 10/100 Mbit | 10/100 Mbit | 10/100 Mbit | 10/100 Mbit |
| Parallel Camera Interface | — | — | — | |
| Serial Interface | 2 x RS232, 1 x RS422/485 | 3 x RS232 | 1 x RS232 | 2 x RS232 |
| CAN | CAN (Microchips MCP2515) | — | — | — |
| Input / Output | ||||
| Switches & LEDs | — | — | — | |
| Multimedia | ||||
| Resistive Touch | 4/5 wire | 4/5 wire | 4 wire | 4 wire |
| Audio | Line-In / Line-Out, Mic-In | Line-In / Line-Out, Mic-In | Line-In / Line-Out, Mic-In | Line-In / Line-Out, Mic-In |
| Video Out | VGA / DVI-I | DVI-I | VGA | VGA |
| LCD Interface | RGB, LVDS | RGB, LVDS | RGB | RGB |
| RTC on Board | ||||
| Physical | ||||
| Supply Voltage | 7-27V DC | 6-27V DC | 7-24V DC | 7-24V DC |
| On-Board Power Supplies | 5V / 3.3V 5A | 5V / 3.3V 5A | 5V / 3.3V 5A | 5V / 3.3V 5A |
| Size | 200 x 200 mm | 100 x 72 mm | 160 x 100 mm | 160 x 100 mm |
| 21022000 | Ambicom WL250N USB | V2.0A | Volume Production |
Ambicom Wl250n USB WIFI Datasheet Technical Details
| 01111000 | Colibri Fasteners | V1.0A | Volume Production |
Colibri ARM SOM Fastener Datasheet Technical Details
| 12031000 | Display EDT 5.7" | V1.0A | Volume Production |
The EDT 5.7” TFT VGA with Touch is a TFT LCD display which features an 18 bit digital RGB interface. It supports a native VGA (640x480) resolution and features a built-in resistive touch screen. This display can be directly connected to any Toradex carrier board which supports the Unified TFT Interface from EDT. A 25mm FFC cable to connect it with a carrier board is included.
EDT 5.7" TFT WVGA Touch Datasheet Technical Details
| 12041000 | Display EDT 7.0" | V1.0 | Volume Production |
The EDT 7” TFT WVGA with Touch is a TFT LCD display which features an 18 bit digital RGB interface. It supports a native WVGA (800x480) resolution and features a built-in resistive touch screen. This display can be directly connected to any Toradex carrier board which supports the Unified TFT Interface from EDT. A 25mm FFC cable to connect it with a carrier board is included.
EDT 7.0 TFT WVGA Touch Datasheet Technical Details
| 01071001 | LVDS Converter - 1mm pitch | V1.0B | Volume Production |
LVDS Converter Datasheet Technical Details
| 01081000 | LVDS Converter - 1.25mm pitch | V1.0A | Volume Production |
LVDS Converter Datasheet Technical Details
| 00201200 | Colibri T20 - 256MB | V1.2A | Volume Production |
The Colibri T20 is part of the Colibri (ARM based) product family. The T20 module is based on NVIDIA's Tegra 2 ARM Cortex A9 MPCORE Dual Core processor, runs at 1.0GHz and was the first computer-on-module to feature this processor within the embedded market.The module comes with a pre-installed and fully licensed Windows Embedded Compact 7 core OS. Linux and Android are also available. |
|
| 1-499 | 500-999 | 1000-9999 | 10000-... | Stock | |
| $125.00 | $108.00 | $97.00 | $86.00 | 100 pcs |
| 00211200 | Colibri T20 - 512MB | V1.2A | Volume Production |
The Colibri T20 is part of the Colibri (ARM based) product family. The T20 module is based on NVIDIA's Tegra 2 ARM Cortex A9 MPCORE Dual Core processor, runs at 1.0GHz and was the first computer-on-module to feature this processor within the embedded market.The module comes with a pre-installed and fully licensed Windows Embedded Compact 7 core OS. Linux and Android are also available. |
|
| 1-499 | 500-999 | 1000-9999 | 10000-... | Stock | |
| $139.00 | $122.00 | $111.00 | $99.00 | 200 pcs |
| 00241200 | Colibri T20 - 256MB IT | V1.2A | Volume Production |
The Colibri T20 is part of the Colibri (ARM based) product family. The T20 module is based on NVIDIA's Tegra 2 ARM Cortex A9 MPCORE Dual Core processor, runs at 1.0GHz and was the first computer-on-module to feature this processor within the embedded market.The module comes with a pre-installed and fully licensed Windows Embedded Compact 7 core OS. Linux and Android are also available. |
|
| 1-499 | 500-999 | 1000-9999 | 10000-... | Stock | |
| $149.00 | $132.00 | $118.00 | $104.00 | No Stock Info |
| 00221200 | Colibri T20 - 512MB IT | V1.2A | Volume Production |
The Colibri T20 is part of the Colibri (ARM based) product family. The T20 module is based on NVIDIA's Tegra 2 ARM Cortex A9 MPCORE Dual Core processor, runs at 1.0GHz and was the first computer-on-module to feature this processor within the embedded market.The module comes with a pre-installed and fully licensed Windows Embedded Compact 7 core OS. Linux and Android are also available. |
|
| 1-499 | 500-999 | 1000-9999 | 10000-... | Stock | |
| $169.00 | $155.00 | $139.00 | $125.00 | 145 pcs |
| 01013100 | Colibri Evaluation Board | V3.1A | Volume Production |
The Colibri Evaluation Board is designed to be a flexible development environment to explore and evaluate the functionality and performance of the entire Colibri product family and includes support for the additional/enhanced functionality on the Colibri T20 and Colibri T30, the Toradex modules which feature the NVIDIA® Tegra™ 2 and Tegra 3 processors. |
|
| 1-... | Stock | |
| $279.00 | 11 pcs |
| 01351100 | Iris Carrier Board | V1.1A | Volume Production |
Iris is a compact carrier board for the Colibri family of computer-on-modules. Iris supports all modules in the Colibri product family, and includes support for the additional/enhanced functionality on the Colibri T20 and T30 products. |
|
| 1-5 | 6-99 | 100-499 | 500-... | Stock | |
| $99.00 | $85.00 | $69.00 | $62.00 | 85 pcs |
| 01021002 | Orchid Carrier Board | V1.0C | Volume Production |
The Standard Carrier Board for Colibri Modules Orchid is a computer carrier board that turns Toradex® Colibri modules into ready-to-use computer boards. Orchid provides almost any functionality of a regular industrial PC, but at a much lower power consumption. In addition,the Windows CE operating system has the advantage of high stability and very short startup time. Linux and QNX are also available from third parties. All features are integrated on a small 100x160 mm sized |
|
| 1-5 | 6-99 | 100-499 | 500-... | Stock | |
| $209.00 | $179.00 | $139.00 | $125.00 | 6 pcs |
| 01031001 | Orchid Carrier Board | V1.0B | Volume Production |
The Standard Carrier Board for Colibri Modules Orchid is a computer carrier board that turns Toradex® Colibri modules into ready-to-use computer boards. Orchid provides almost any functionality of a regular industrial PC, but at a much lower power consumption. In addition,the Windows CE operating system has the advantage of high stability and very short startup time. Linux and QNX are also available from third parties. All features are integrated on a small 100x160 mm sized |
|
| 1-5 | 6-99 | 100-499 | 500-... | Stock | |
| $209.00 | $179.00 | $139.00 | $125.00 | 11 pcs |
| 21022000 | Ambicom WL250N USB | V2.0A | Volume Production |
USB WiFi Dongle from Ambicom, 300Mbps, Drivers for Windows, WinCE and Linux. Supports 2.4GHz 802.11g/b/n standards Up to 150Mbps high-speed data rate Supports 64/128-bit WEP Encryption, WPA, WPA2 and CISCO CCX security Supports WMM (QoS) function to better manage higher priority audio / video data streaming bandwidth requirement. Example: VOIP, WebTV, Internet radio Software based Wi-Fi Protected Setup (WPS) Supports USB 2.0/1.1 interface Portable and mini-size design Supports |
|
| 1-5 | 6-99 | 100-499 | 500-... | Stock | |
| $29.00 | $28.00 | $26.00 | $23.00 | 13 pcs |
| 01111000 | Colibri Fasteners | V1.0A | Volume Production |
The Colibri Fastener is made for a better fixation of the Colibri on its carrier board. Two of them can be inserted into prefabricated holes on the carrier board. After this, the Colibri module can be easily clipped into the locking mechanism of the Colibri Fastener. All carrier boards from Toradex provide mounting holes for two Colibri Fasteners. |
|
| 1-9 | 10-99 | 100-999 | 1000-... | Stock | |
| $55.00 | $41.00 | $35.00 | $31.00 | 37 pcs |
| 12031000 | Display EDT 5.7" | V1.0A | Volume Production |
The EDT 5.7” TFT VGA with Touch is a TFT LCD display which features an 18 bit digital RGB interface. It supports a native VGA (640x480) resolution and features a built-in resistive touch screen. This display can be directly connected to any Toradex carrier board which supports the Unified TFT Interface from EDT. A 25mm FFC cable to connect it with a carrier board is included. |
|
| 1-... | Stock | |
| $125.00 | 5 pcs |
| 12041000 | Display EDT 7.0" | V1.0 | Volume Production |
The EDT 7” TFT WVGA with Touch is a TFT LCD display which features an 18 bit digital RGB interface. It supports a native WVGA (800x480) resolution and features a built-in resistive touch screen. This display can be directly connected to any Toradex carrier board which supports the Unified TFT Interface from EDT. A 25mm FFC cable to connect it with a carrier board is included. |
|
| 1-... | Stock | |
| $139.00 | 13 pcs |
| 01071001 | LVDS Converter - 1mm pitch | V1.0B | Volume Production |
Introduction Attached to the Generic Display Connector found on various Toradex products (such as the Colibri Evaluation Board and the Orchid) the Toradex LCD-Converters family of products enables the attachment of Industry Standard Panels with a LVDS Interface. Currently there are two members of this product line available: LVDS_A1715_V01_00a: LVDS Converter 1.25mm pitch LVDS_A1715_V01_00b: LVDS Converter 1.0mm pitch Each of these Converters |
|
| 1-5 | 6-99 | 100-499 | 500-... | Stock | |
| $55.00 | $47.00 | $40.00 | $33.00 | 3 pcs |
| 01081000 | LVDS Converter - 1.25mm pitch | V1.0A | Volume Production |
Introduction Attached to the Generic Display Connector found on various Toradex products (such as the Colibri Evaluation Board and the Orchid) the Toradex LCD-Converters family of products enables the attachment of Industry Standard Panels with a LVDS Interface. Currently there are two members of this product line available: LVDS_A1715_V01_00a: LVDS Converter 1.25mm pitch LVDS_A1715_V01_00b: LVDS Converter 1.0mm pitch Each of these Converters |
|
| 1-5 | 6-99 | 100-499 | 500-... | Stock | |
| $55.00 | $47.00 | $40.00 | $33.00 | 3 pcs |
