Mezzanine board for Apalis T30 module

CSI and DSI interfaces on one connector, Push button for Apalis T30 reset.

Mezzanine board for Apalis iMX6 module

1x Tactile switch to enter Apalis iMX6 module recovery mode, 1x Tactile switch to reset Apalis iMX6 module, -40° to +85° C Temp, Range. Size: 100 x 60 mm.

Mezzanine board for Apalis TK1 module

1x DSI and 3x MIPI CSI connectors, 1x Tactile switch to enter Apalis TK1 recovery mode, 1x Tactile switch to reset Apalis TK1 module.

Fasteners for Colibri modules

1 Fastener bag contains 100 Fasteners.

Resistive Touch Displays it for Apalis & Colibri modules

Touch: 4-Wire Resistive Touch, 40 pin FFC cable (250mm) to connect it with a Carrier Board, No special drivers required, -20° to +70° C Temp, Range. Size: 164.9 x 100.0 x 13.0 mm.

Capacitive Touch Displays for Apalis & Colibri modules

40 pin and 10 pin FFC cable (250mm) to connect it with a Carrier Board, Atmel touch driver, -20° to +70° C Temp, Range. Size: 173 x 112 x 13 mm.

Capacitive Touch Displays (LVDS) for Apalis & Colibri modules

LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board, -20° to +70° C Temp, Range. Size: 248.5 x 166.1 x 15.0 mm.

LM816 USB WiFi for Apalis and Colibri Family

Plug and Play (Linux, macOS X, Windows XP – 10, Windows 10 IoT Core and Windows Compact Embedded 6/7 compatible), BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes, WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes, Can be setup as a ad-hoc network via peer to peer communications, -10°C to +60°C Temp, Range. Size: 17 x 15 x 8 mm.

HDMI Adapter for Colibri modules

No external power supply required, Range. Size: 32 x 32 mm.

Analogue Camera Adapter for Apalis & Colibri modules

Parallel data output format: 8-Bit Parallel ITU-R BT.656 with external HSync and VSync, No external power supply required, Compatible with Colibri Evaluation Board and Apalis Evaluation Board, -10°C to +60°C Temp, Range. Size: 60 x 50 x 9.4 mm.

Accessory kit for Toradex carrier boards

Power Adapter: 12VDC 30W with international plugs, Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board.

Capacitive Touch Adapter for the new Parallel Capacitive Touch Displays.

-30° to +85° C Temp, Range. Size: 20 x 20 x 8.4 mm.

Product Support is provided free of charge at Toradex's discretion.

Please note that the support hours credits are valid until 6 months from the date of purchase.

Connects directly to the DSI/LVDS connector on the Colibri iMX8X using a 24-pin FFC cable, No external power supply required.

Connects directly to the DSI/LVDS connector on the Colibri iMX8X using a 24-pin FFC cable, No external power supply required.

Cable length: 100mm, Frequency bands: 2.4 GHz and 5 GHz (dual-band), Manufacturer: Unictron, Reference: AA222 (H2B1PD1A1C385L), Range. Size: 40.0 x 6.0 x 0.5 mm.

Frequency bands: 2.4 GHz and 5 GHz (dual-band), Manufacturer: Chang Hong, Reference: DA-2458-02, Range. Size: 106.0 x 10.0 (max. diameter) mm.

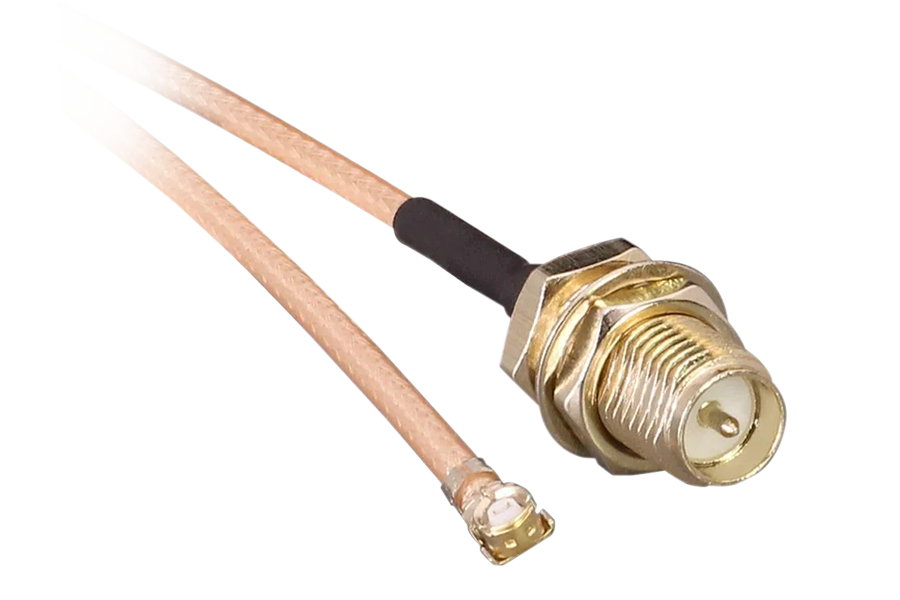

Cable length: 100mm.

Cable length: 200mm.

Cable length: 200mm, Suitable for outdoor-usage (IP67).
