Capacitive Touch Display

This display is directly compatible with the complete Colibri SoM family, as well as the Apalis T30 and the Apalis iMX6 Modules. It works with the Ixora and Aster Carrier Boards out-of-the-box.

Capacitive Touch Display

特色

Description

7.0” WVGA 800 x 3 (RGB) x 480 High Brightness Capacitive Touch TFT Module for the use with Toradex Apalis and Colibri modules.

  • 7" WVGA, a-Si TFT Display
  • 18-bit RGB + TCON
  • 40 pin and 10 pin FFC cable to connect it with a Carrier Board
  • Atmel touch driver

Out-of-the-Box Experience with Toradex Carrier Boards

This display is directly compatible with the complete Colibri SoM family, as well as the Apalis T30, Apalis iMX6 and Apalis iMX8X. It works with the following Toradex Carrier Boards out-of-the-box:

Using the Capacitive Touch Adapter, the following Boards are compatible as well:

Scope of delivery

  • 7” Capacitive Touch Display Panel
  • 10 Pins 0.5mm FFC Ribbon Cable
  • 40 Pins 0.5mm FFC Ribbon Cable


功能

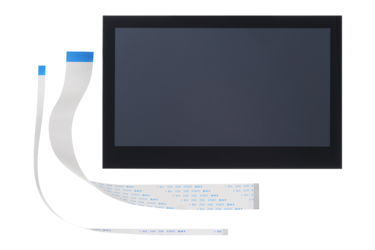

正面

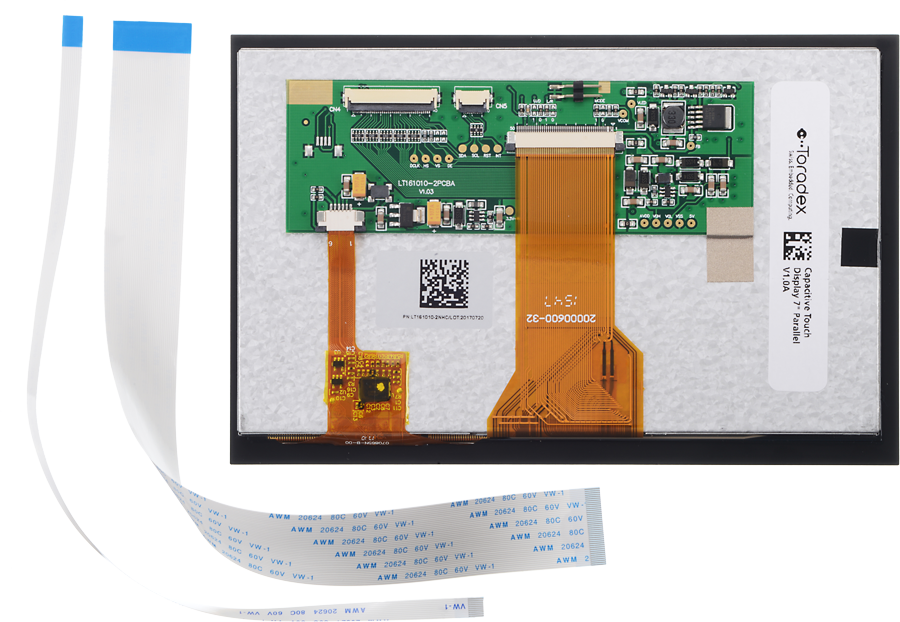

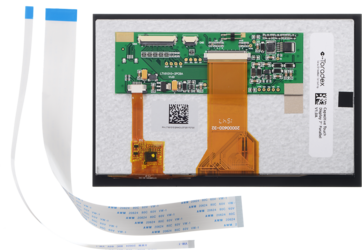

背面


Capacitive Touch Display 7" Parallel

PN: 1211
  •
立刻购买
Accessory Feature 4
Accessory Feature 5
40 pin and 10 pin FFC cable (250mm) to connect it with a Carrier Board
Atmel touch driver
Supply Voltage
Size
Temperature
3.3V
173 x 112 x 13 mm
-20° to 70° C
预期用途
Pricing
用于评估/开发
1 : US$119.90

载板

载板为计算机模块提供必要的信号和供电。 它还具针对应用的互联和多媒体接口,例如USB、以太网、UART、HDMI

了解关于单板电脑和载板的详情

Ixora Carrier Board

数据手册

Aster 载板

数据手册
Supported Modules
USB 3.0
USB 2.0
Ethernet
PCIe
I2C
SPI
UART
PWM
GPIO
Analog Input
Serial ATA
SDIO/SD/MMC
CAN
JTAG
Entire Apalis Family
2x Host
1x Host / 1x OTG
Gigabit
1x (Mini PCIe)
2x
1x
3x RS232
4x
up to 40
4x
1x mSATA
1x 4 Bit (microSD)
2x
Entire Colibri Family
2x Host, 1x Client (Shared)
10/100 Mbit
1x
1x
2x TTL, 1x USB-UART
4x
up to 39
4x
1x 4 Bit (SD/MMC)
1x (Available with Colibri VFxx and iMX)
Yes
LEDs
2x
up to 3x
LVDS
HDMI
S/PDIF In / Out
VGA
RGB
Capacitive Touch Interface
Resistive Touch
Camera Parallel Interface
Camera Serial Interface
Analog Audio Line in
Analog Audio Mic in
Analog Audio Headphone out
1x Dual Channel
1x
1x / 1x
1x (24 Bit)
Yes
4/5-wire
1x 10 Bit
1x Quad Lane MIPI CSI-2
1x (Stereo)
1x (Mono)
1x (Stereo)
1x (Shared with RGB)
1x (18 bit)
Yes
4-wire
1x
1x (Stereo)
1x (Mono)
1x (Stereo)
Type Specific Board Connector
USB-to-RS232 Transceiver
RTC on Board
Altium CAE Data Freely Available
1x
Yes
Arduino UNO and Raspberry Pi B+
1x
1x
Yes
Supply Voltage
On-Board Power Supplies
Size
Temperature
7-27V DC
5V 6A
3.3V 8A
125 x 90 mm
-20° to 85° C
5V DC +/- 5%
3.3V 3A
100 x 80 mm
-25° to 85° C
预期用途
Pricing
Minimum Product Commitment
用于最终产品
1-99 : US$134.40
>99 : RFQ
2034+
用于评估/开发
1 : US$69.90

配件

Toradex 提供可直接用于最终产品的现成配件。 对于少数配件,可以提供设计文件,包括装配图、原理图和Altium项目。
除了在线商场销售的外设,Toradex 还测试了大量的其他设备,通过与摄像头、调制解调器、显示屏、传感器等厂商直接合作,令其产品可以尽可能便捷得集成到 Toradex 的模块。

在开发者中心网站上了解详情

立刻购买

1 模块, 2 载板, 1 配件
V1.0B
Capacitive Touch Display 7
PN: 12111001

Capacitive Touch Displays for Apalis & Colibri modules

40 pin and 10 pin FFC cable (250mm) to connect it with a Carrier Board. Atmel touch driver. -20° to 70° C Temp, Range. Size: 173 x 112 x 13 mm.

  • 数量
    >0
  • 单价
    US$119.90
预期用途: 用于评估/开发
V1.3A
Ixora Carrier Board V1.3A
PN: 01331300
Volume Production

Small form-factor Apalis Arm Computer Module family Carrier Board

Connectivity: USB 3.0: 2x Host, USB 2.0: 1x Host/ 1x OTG, Gigabit Ethernet, 2x I2C, 1x SPI, 4x PWM, 4x ADC, 2x CAN, 2x LEDs, up to 40 GPIOs

Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x/ 1x S/PDIF In/ Out, 1x 10 Bit Camera Parallel Interface, 4/5-wire Resistive Touch

Physical: 7-27V DC Supply Voltage, 5V 6A, 3.3V 8A On-Board Power Supplies, Size: 125 x 90 mm

  • 数量
    1-99
    >99
  • 单价
    US$134.40
目前库存有限。即将补货。请联系我们获得详细情况。
预期用途: 用于最终产品
V1.1B
Aster 载板
PN: 01431101
Sample Production

Small form-factor with header compatible with Arduino Uno and Raspberry Pi (RPi) maker boards

Connectivity: USB 2.0: 2x Host, 1x Client (Shared), 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, 1x (Available with Colibri VFxx and iMX) CAN, up to 3x LEDs, up to 39 GPIOs

Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x Camera Parallel Interface, 4-wire Resistive Touch

Physical: 5V DC +/- 5% Supply Voltage, 3.3V 3A On-Board Power Supplies, Size: 100 x 80 mm

  • 数量
    >0
  • 单价
    US$69.90
预期用途: 用于评估/开发
V1.0A
Capacitive Touch Adapter
PN: 01511000
Sample Production

Capacitive Touch Adapter for the new Parallel Capacitive Touch Displays. .

-30° to 85° C Temp, Range. Size: 20 x 20 x 8.4 mm.

  • 数量
    >0
  • 单价
    US$19.90
预期用途: 用于评估/开发
Have a Question?
