SMARC Development Board with HDMI Adapter
The SMARC Development Board is a fully featured carrier board providing easy access to all features of the SMARC family. Several display adapter boards will be available to support HDMI, LVDS and DSI interfaces (a DSI to HDMI Adapter is included with SMARC Development Boards).
特色
Easy Access to SMARC Interfaces
You can easily access SMARC Interfaces by means of physical connectors and standard pitch headers. It includes Display Port, HDMI, M.2 Key B (for cellular modems), M.2 Key E (for WiFi modules, AI accelerators), CSI, DSI, LVDS, USB-C, Analog Audio, up 3x 1GB ETH PHY, and more. This board provides a flexible development environment to explore the functionality and performance of the Toradex SMARC Computer on Module Family.
Built for Developers
The board is equipped with jumpers and breakout areas for easy probing, debugging, and re-routing. It also includes buttons, switches, level shifters, LEDs, and a JTAG interface to support your development journey.
Open-source Hardware
All the Design Data is available, including Altium Design Files, Schematics, and Bill of Material (BOMs), making Aquila an ideal starting point for your customized board.
Learn More
Equipped with Industry-standard interfaces
The SMARC Development Board includes transceivers for CAN, Isolated CAN, RS-232, and RS-485, allowing you to connect industry-standard interfaces directly.
Torizon
SMARC Development Board is supported by Torizon, Toradex's Easy-to-Use Industrial Linux Platform. It allows you to Modernize your Development and Maintenance. Torizon is easy to use, secure, and reliable thanks to full-stack integration from the cloud to the hardware.
Learn More
功能

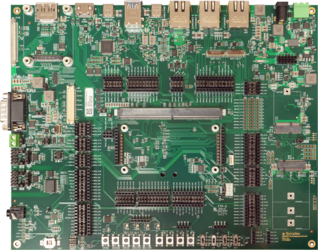

正面

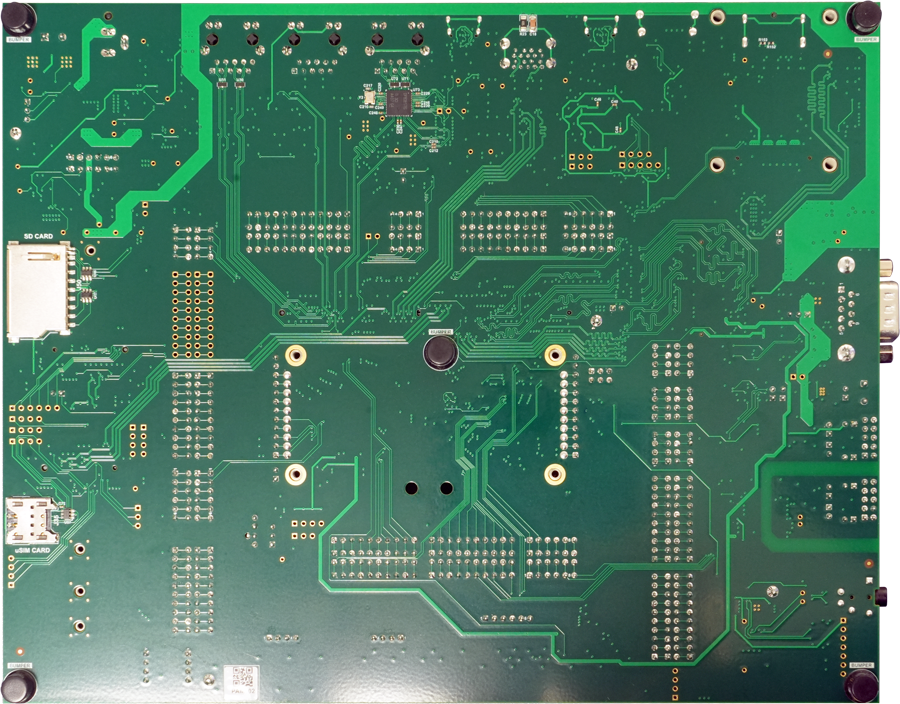

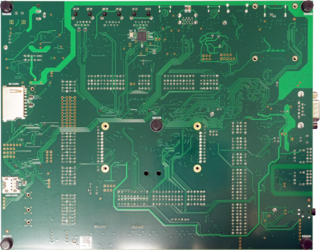

背面
| Supported Modules | Entire Toradex SMARC Family & 3rd-Party ARM-based SMARC Modules |
| USB 3.0 | 2x USB-A (Host) |
| USB 2.0 | 1x USB-C (Dual Role) |
| Ethernet | 3x Gigabit |
| PCIe | 1x M.2 Key E 1x M.2 Key B (+ Micro-SIM card connector) |
| I2C | 5x |
| SPI | 2x |
| UART | 4x |
| PWM | 3x |
| GPIO | 14x |
| RS232 | 1x |
| RS485 | 1x |
| SDIO/SD/MMC | 1x 4 Bit (Full Size) |
| CAN | 2x |
| JTAG | 1x |
| Display Serial Interface | 1x Quad Lane MIPI DSI |
| LVDS | 1x Dual-Channel |
| HDMI | 1x Native / 1x Via included Verdin DSI to HDMI Adapter |
| Digital Audio | 2x I2S |
| Display Port | 1x |
| Embedded Display Port (eDP) | 1x |
| Camera Serial Interface | 1x Quad Lane MIPI CSI / 1x Dual Lane MIPI CSI |
| Analog Audio Line in | 1x (Stereo) |
| Analog Audio Mic in | 1x (Stereo) |
| Analog Audio Headphone out | 1x (Stereo) |
| Analog Audio Line out | 1x (Stereo) |
| Size | 250 x 200mm |
| Temperature | 0° to 70° C |
| Power Supply - Primary | 9-24V (+/-10%) |
