Apalis Arm-Familie

Apalis ist eine skalierbare System-on-Module (SoM) / Computer-on-Module (CoM) Familie, die hohe Leistung auf einem kompakten Formfaktor bietet. Apalis ermöglicht die Entwicklung von modernen und robusten Produkten in kurzer Zeit und mit geringem Risiko. Apalis-Module verfügen über den höchsten Leistungsbereich in der Toradex-Produktpalette und bieten die meisten Schnittstellen aller Produktlinien auf den 314-poligen MXM-Steckern. Apalis-Module eignen sich für eine Vielzahl von Anwendungen in Bereichen wie Gesundheitswesen, Industrieautomation, Robotik, Smart Cities und viele mehr. Apalis-Module werden von den Toradex-Softwareangeboten und dem grossen Ökosystem anderer Produkte und Dienstleistungen unterstützt.

Apalis Family

Highlights

Arm®-basierende Module

Basierend auf NVIDIA® Tegra, NXP® i.MX 6, i.MX 8 SoCs

Plattform-Skalierbarkeit

Pin-kompatible Products innerhalb der Familie

GPU-Support

3D GPU für High-End Grafik- und General-Purpose-Funktionen

High Performance

Bietet den höchsten Leistungsbereich für CPU und GPUs, sowie ausgiebig Speicher

SnapLock™

314-pin MXM3 Edge-Verbinder mit innovativer SnapLock™-Technologie für schnelle Montage.

Robust

Vibrations- und umweltgetestet, um eine zuverlässige Leistung in rauen Umgebungen zu gewährleisten.

Einfaches Carrier-Board

High-Speed DDR-Routing mit gutem Power-Management

Direct Breakout™

Ermöglicht den direkten Anschluss von realen I/O-Ports, ohne dass Leiterbahnen gekreuzt oder Schichten durchquert werden müssen

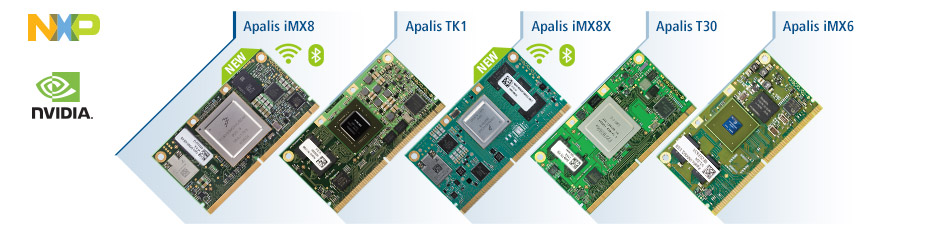

Die Apalis Computer-on-Module-Familie

  • A72
  • A72
  • A53
  • A53
  • A53
  • A53
  • M4F
  • 3D GPU OpenVX/OpenCL
  • 8GB RAM
  • 32GB FLASH
  • A9
  • A9
  • A9
  • A9
  • 3D GPU
  • 2GB RAM
  • 8GB FLASH
  • A9
  • A9
  • A9
  • A9
  • 3D GPU
  • 2GB RAM
  • 4GB FLASH

Software

Apalis Computer-on-Modules - Vergleichstabelle

Apalis iMX8

Apalis iMX6

CPU Name
CPU Type
Microcontroller
CPU Clock
Floating Point Unit
NEON
L1 Instruction Cache
L1 Data Cache
L2 Cache
NXP® i.MX 8QuadMax
2x Arm Cortex™-A72
4x Arm Cortex™-A53
2x Arm Cortex™-M4F
1.6 GHz (A72)
1.26 GHz (A53)
266 MHz (M4)
Yes
Yes
48KB (A72), 32KB (A53), 16KB (M4)
32KB (A72), 32KB (A53), 16KB (M4)
1MB (A72), 1MB (A53)
NXP® i.MX 6Quad
4x Arm Cortex™-A9
800 MHz
VFPv3
Yes
32KB per core
32KB per core
1MB
RAM
Flash
8GB LPDDR4 (64 bit)
32GB eMMC
2GB DDR3 (64 Bit)
4GB eMMC
USB 3.0
USB 2.0
Ethernet
Wi-Fi
Bluetooth
PCIe
I2C
SPI
UART
IrDA
PWM
GPIO
Analog Input
Serial ATA
SDIO/SD/MMC
CAN
JTAG
1x Host
2x Host / 1x OTG
Gigabit with AVB (+2nd RGMII)
2.4/5 GHz Dual Band 2x2 Wi-Fi 5 (802.11ac)
Bluetooth 5.3
2 (x1 Gen 3)
7x
4x
7x
1x
8x
up to 133
8x
1x (SATA-III)
1x 8 Bit, 1x 4 Bit
3x (CAN FD)
1x
4x Host / 1x OTG
Gigabit with IEEE 1588
1 (x1 Gen 2)
3x
3x
5x
1x
4x
up to 135
4x
1x (SATA-II)
3x 8 Bit
2x
Display Controller
Graphics Controller
Video Decoder
Video Encoder
Display Serial Interface
LVDS
HDMI
Digital Audio
S/PDIF In / Out
2D Acceleration
3D Acceleration
Display Port
VGA
RGB
Resistive Touch
Camera Parallel Interface
Camera Serial Interface
Analog Audio Line in
Analog Audio Mic in
Analog Audio Headphone out
Quad, Independent
Dual Vivante GC7000 XSVX
Yes
Yes
1x single lane MIPI DSI
3x 1366 x 768 x 24bpp Single / 1x 1920 x 1200 x 24bpp Dual + 1x 1366 x 768 x 24bpp Single
4K UltraHD (V2.0a, 2160p)
3x AC97 or
3x I2S,
1x ESAI
1x / 1x
Yes
Yes
1x eDP 1.4 or 1x DP 1.3
4-wire
2x Quad Lane MIPI CSI-2
1x (Stereo)
1x (Mono)
1x (Stereo)
Dual, Independent
Vivante GC2000
DivX 3/4/5/6, H.263, H.264, MJPEG, MPEG-2, MPEG-4, VC1
H.263, H.264, MJPEG, MPEG-4
1x Dual Lane MIPI DSI
2x 1366 x 768 x 24bpp Single /
1x 1920 x 1200 x 24bpp Dual
Full HD (V1.4a, 1080p)
3x AC97 or
3x I2S,
1x ESAI
1x / 1x
Yes
Yes
1280 x 1024
1920 x 1200 x 24bpp
4-wire
2x 8/16/20 Bit
1x Quad Lane MIPI CSI-2
1x (Stereo)
1x (Mono)
1x (Stereo)
Torizon
Embedded Linux
Windows Embedded Compact 2013
Windows Embedded Compact 7
Included Runtime License
Preinstalled OS
Android
QNX
FreeRTOS
Supported
Supported
Supported by third party
Size
Temperature
Shock / Vibration
Power Dissipation
82.0 x 45.0 x 6.0 mm
-40° to 85° C(1)
Approx. 3.7W - 19.2W
82.0 x 45.0 x 6.0 mm
-40° to 85° C
1.9 - ~7 W

The power consumption is subject to variation, depending on the situation. Our estimation of the minimum and maximum power consumption is based on the lowest idle power consumption and the highest power consumption values during maximum load. Refer our developer article for more information.


Due to limited availability and longer lead times, please consider the Y-Version of the module if you do not need the resistive touch and ADC-functionality of the module. For additional information visit our developer page.

Allgemein: Einige Schnittstellen sind auf Pins verfügbar, die innerhalb der Apalis Computer-on-Module-Familie nicht vollständig kompatibel sind. Es gibt Einschränkungen bei der gleichzeitigen Verwendung verschiedener Schnittstellen, bitte prüfen Sie das jeweilige Datenblatt für genaue Details.
